Description
Deep C® Intensifier is designed for easily mount on ROV , the intensifier is used to increase the pressure. It used for tooling or equipment that requires high pressure and low flow.

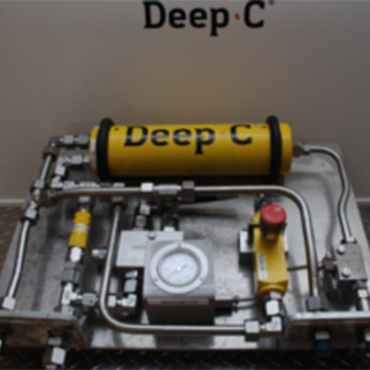

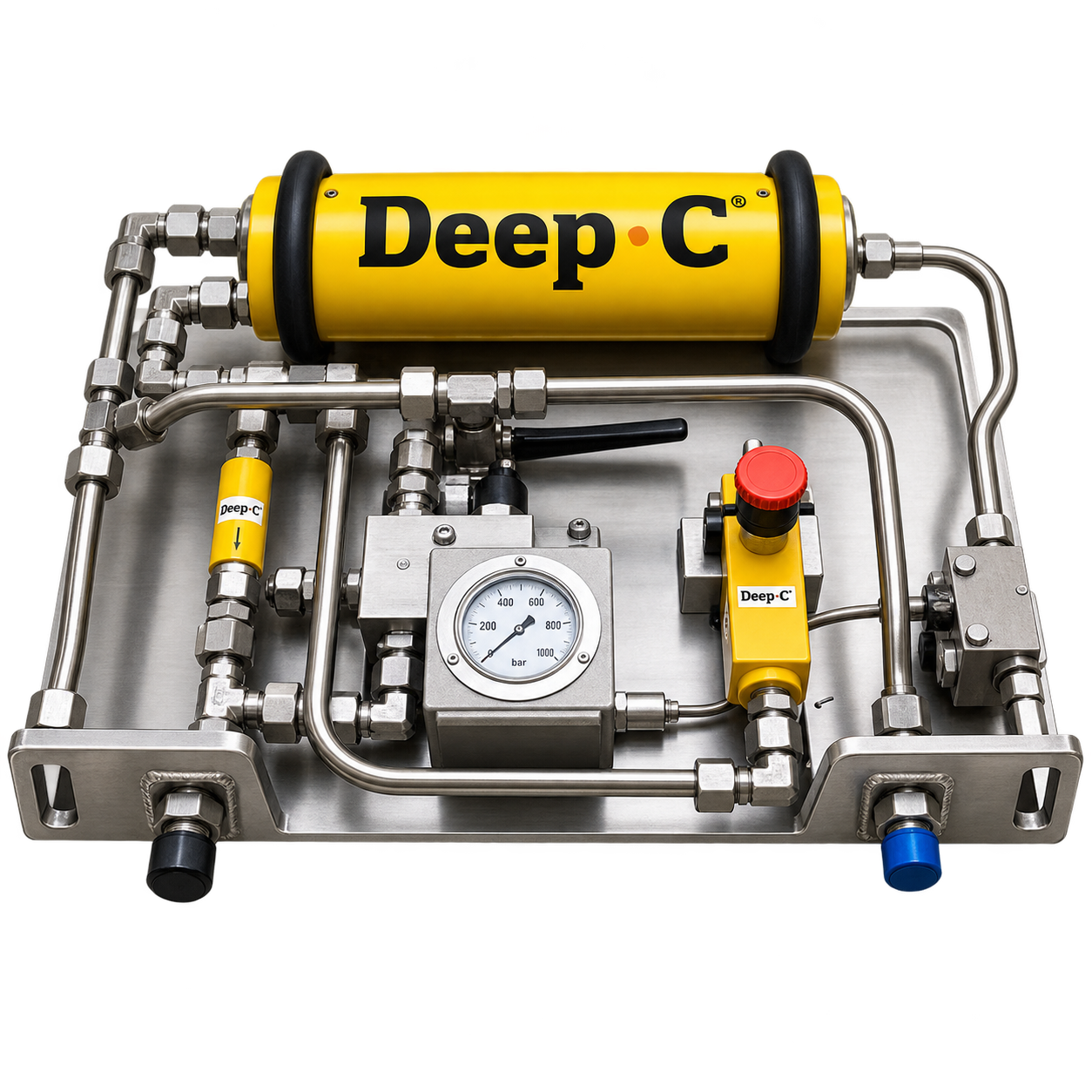

Deep C® Intensifier Panel HC6
- Use of main system to increase higher pressure
- Easy installation
- Pressure gauge
- Blow of valve
Hei dette er fra nettsiden – Deep C Intensifier Panel HC6
Request more information
Applications
- ROV tooling where require higher pressure
- Manifolds maintenance
- Pressure testing
- Water, Oil, Glycol
Technical specifications
| Dimensions (LxWxH): | 450 mm x 400 mm x 150 mm |
| Weight in air | 35 kgs |
| Weight submerged | 30 kgs |
| Min pressure inlet | 20 Bar |
| Max pressure inlet | 200 Bar |
| Max Flow | 11 l/min |
| Max particle size | 10 micron |
| Temperature range Oil | -40°C to +120°C |
| Temperature range Water | +3°C to +50°C |
Transport Dimensions
| Length | 800 mm |
| Width | 600 mm |
| Height | 400 mm |
| Weight | 55 kgs |
