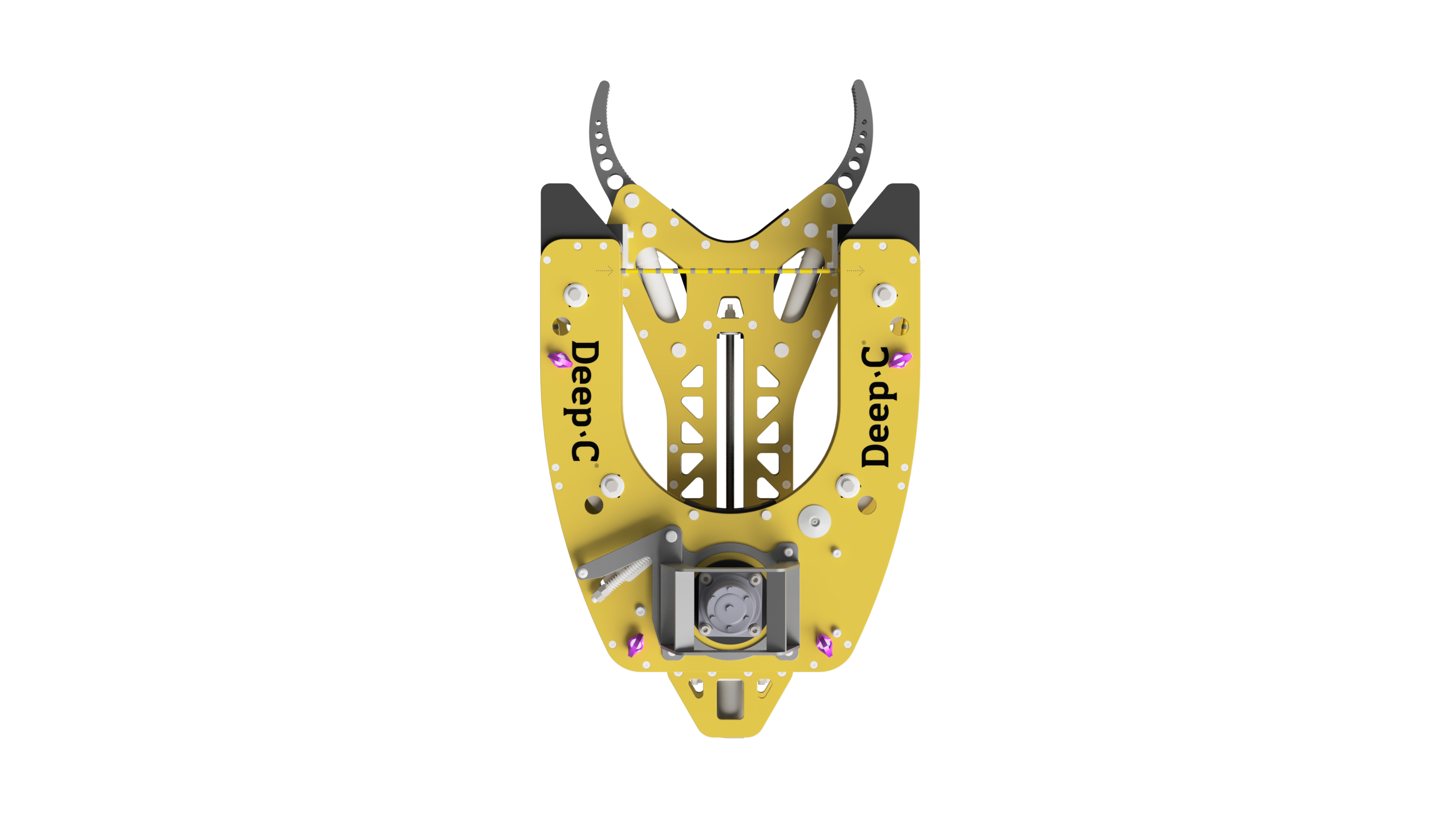

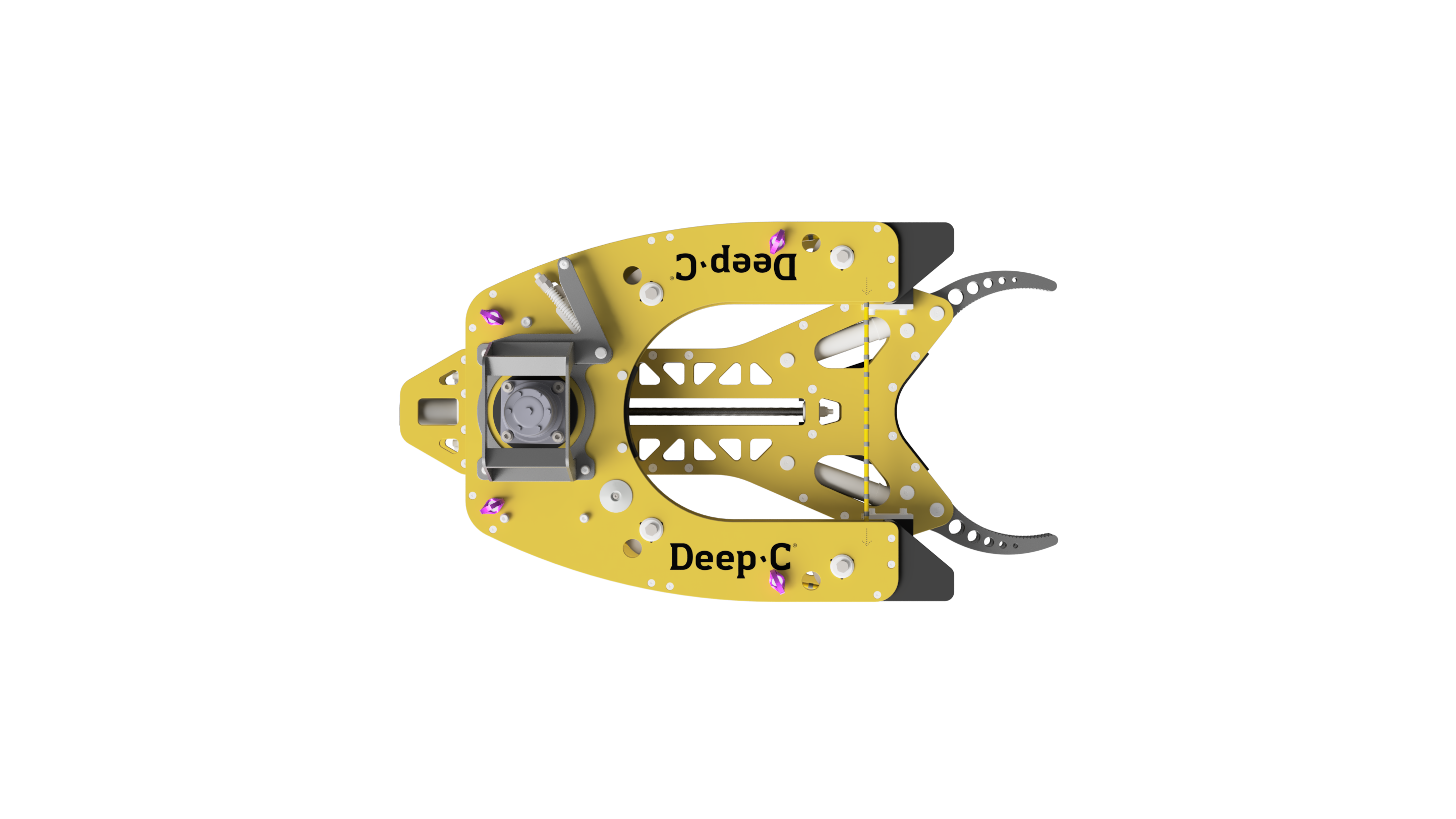

Deep C® Diamond Wire Saw

  • Easy grip from different positions
  • Fixed loop
  • Low power consumption
  • High efficiency
  • Deep C SUV and ROV friendly

Request more information

Categories: , , , ,

Download as pdf

Description

The Deep C® Diamond Wire Saw (DCDWS) is developed with innovative design for high performance and for efficient ROV or Deep C SUV® work. The DCDWS consists of high quality materials that are guaranteed to produce professional results in all fields. Our DCDWS is reliable, powerful and robust, fulfill the highest demands and make your cutting work easier.

Applications

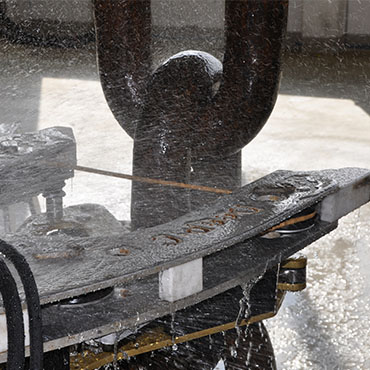

  • Cutting of structures and pipeline
  • Decommissioning
  • Cutting pipe up to 450 mm (18”)

Technical specifications

Dimensions (LxWxH): 1124 mm x 768 mm x 308 mm
Weight 35 kg
Weight submerged 18 kg
Pressure rating 175 Bar
Max flow 50 L/min
Max cutting size 450 mm (18″)
Wire speed 12 m/sec
Port 2 x JIC8


Transport dimensions:

Lenght 1200 mm
Width 800 mm
Weight 80 kgs
