Deep C® 10T Rov Chain hoist



Request more information

Category:

Description

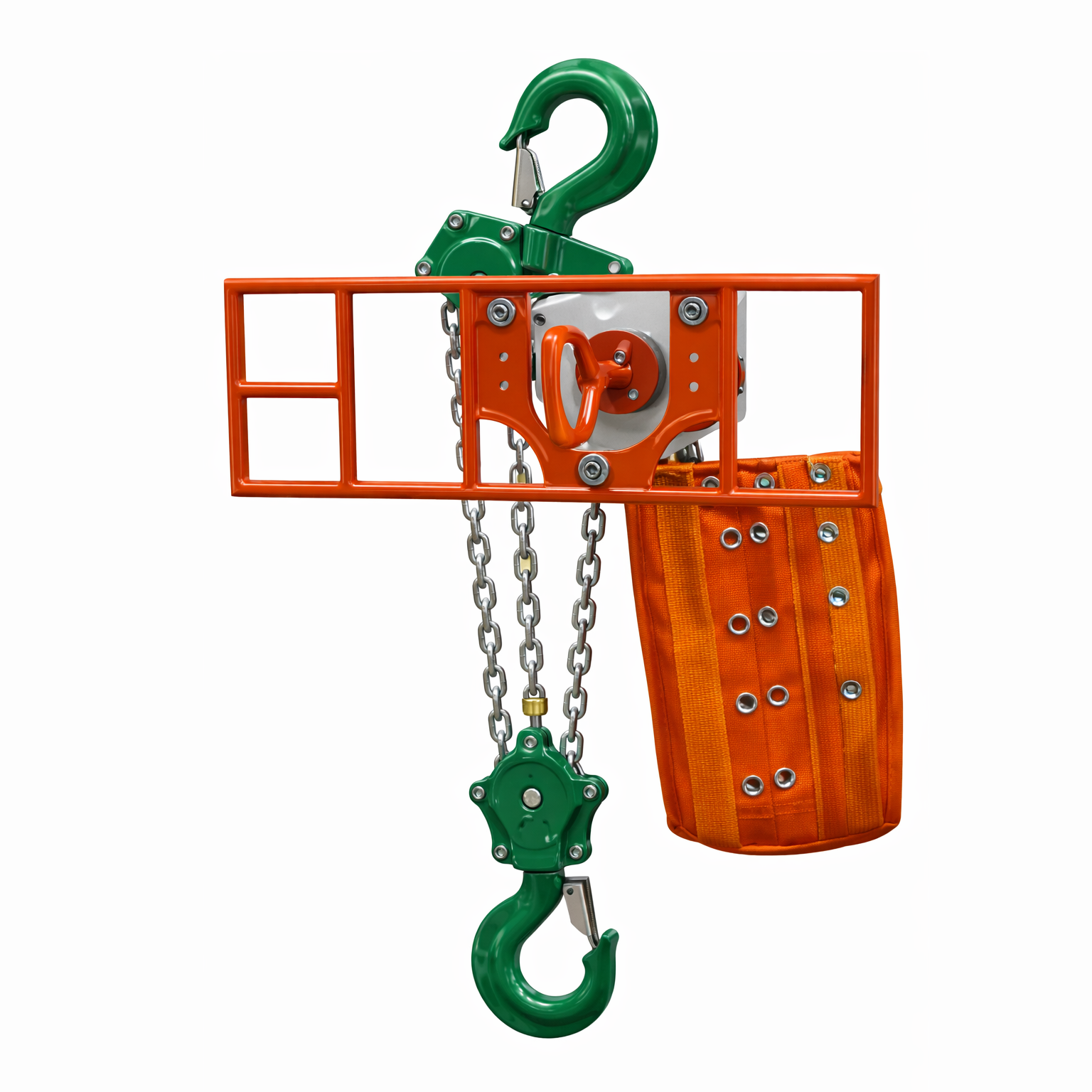

The Deep C® ROV Chain hoist, is a ROV friendly heavy duty lifting tool designed to be used Subsea. The Deep C® ROV chain hoist has high precision and capacity and is a excellent tool for construction, maintenance and levelling operation.

  • Compact light weight
  • 4 Point manipulator connection points
  • Balanced design for easy handling and installation
  • Flexible heavy duty chain bag
  • Manual Fishtail Direct Drive

Applications

  • Designed for marine use
  • For lifting, pulling under construction or maintenance
  • Securing of items or structure
  • Precise smooth leveling under load

Technical specifications

Dimensions (L x W x H) 700mm x 590mm x 400mm
Weight in air 65 kgs
Weight in water 63 kgs
Max torque 50 Nm
Max lift capacity 10 ton

Transport dimensions:

Length 800 mm
Width 600 mm
Height 600 mm
Weight 75 kgs
